ROUGHGUARD

Vandal-resistant linear LED luminaire

Description

The ROUGHGUARD has been designed to be used in industrial corrosive and harsh environments. With applications like police stations and prison cells, railway stations, underground parking areas, mining workshops and others, where vandalism and corrosive elements are prevalent, the ROUGHGUARD will be able to not only withstand these environments, but to also efficiently provide light exactly where it is needed.

Vandal proof

The one-piece, injection-moulded polycarbonate diffuser is vandal resistant. The body and diffuser are designed in such a way to prevent collection of dust on the accessible surface of the body, thus also preventing any grip of the luminaire.

Various cable entry options

Various cable entry options: side entry (through-wiring) or back entry.

Ease of maintenance

The removable gear tray can be relieved into a suspended position, ensuring ease of maintenance.

Various mounting options

Various mounting options: Drill positions or bracket mounting.

Characteristics

General Information

Electrical information

Electrical class
Nominal voltage
Control option(s)

Performance

Luminaire output flux (lm)
763 -
7183
Power consumption (W)
7.0 -
55.0
Luminaire efficacy - up to (lm/W)
143

Optical information

LED colour temperature
Colour rendering index (CRI)
≥80

Housing and finish

Housing
Marine grade aluminium (EN 1706 AC-44300)
Protector
One-piece injection-moulded clear polycarbonate diffuser
Finish
Pearl Light Grey (RAL 9022)
Textured finish
Tightness level
Impact resistance

Lifetime

All configurations

Operating conditions

Operating temperature range (Ta)
-35°C up to +40°C

Dimensions and mounting

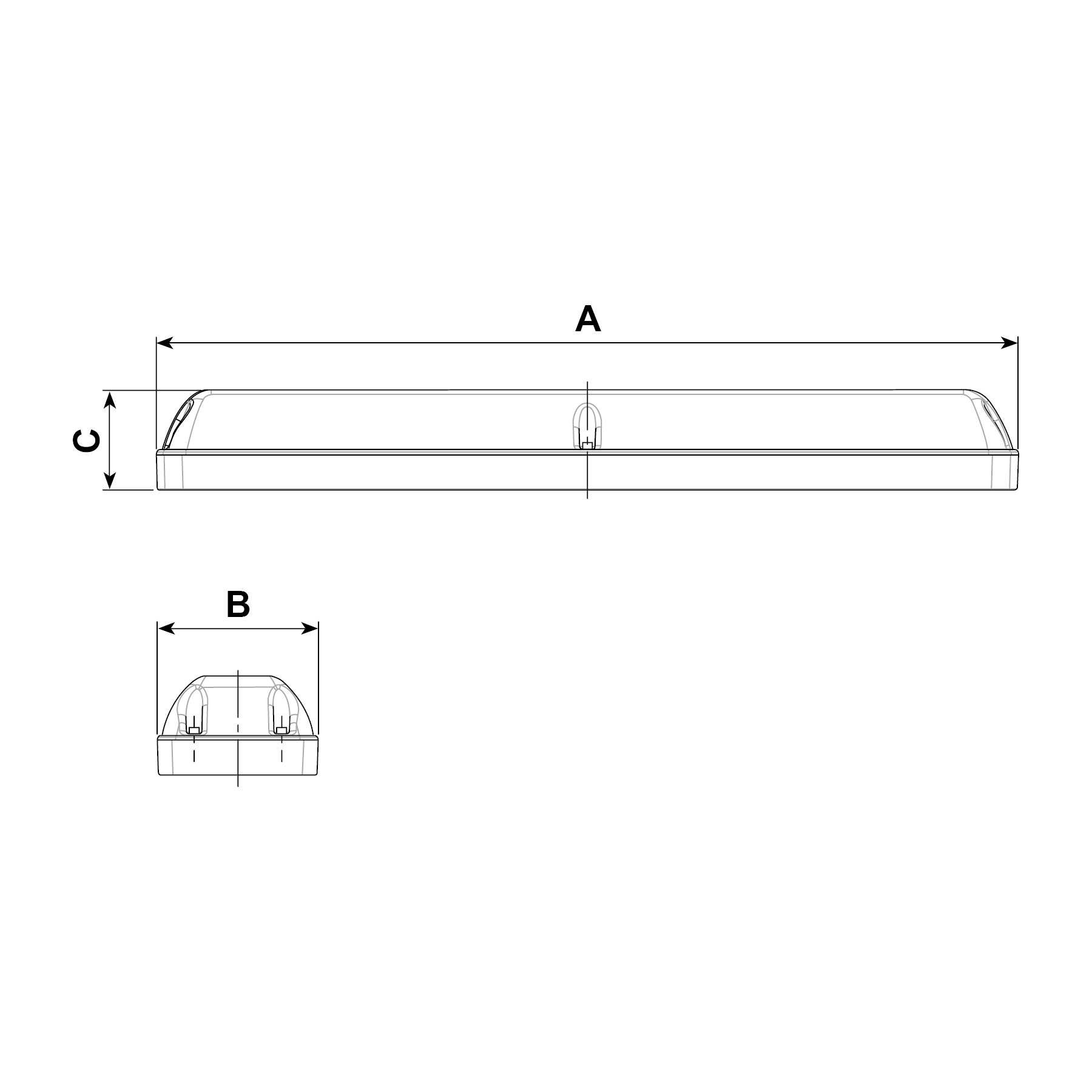

AxBxC (mm | inch)
1ft: 356x138x95
2ft: 742x138x85
Weight (kg | lbs)
1ft: 2.4
2ft: 3.8
Mounting possibilities
Surface mount bracket
Through-wiring
