LEDBEAM

Linear LED spotlight and wallwasher

Description

Акценти та архітектурна підсвітка

Accent & architectural
Signage-lighting

Signage
Bridge | Bruggen

Bridges
Haulage lighting

Haulage lighting

The LEDBEAM is a linear LED floodlight, which has been robustly constructed and offers a high optical performance. Available in different lengths and wattages, the LEDBEAM is suitable for use in various illumination and industrial environments, which include façades, signage, bridges, assembly lines, underground haulage or any other application that requires a linear and robust luminaire.


It can be mounted according to your needs, and the high quality of light with its DC input voltages makes it possible to use control options like DMX and DALI. The choice of LED colours is unlimited due to the RGBW option, enabling you to bring your project to life.
  • Available in different module lengths

    • Available in module lengths of: 330mm/630mm/930mm/1230mm and 1830mm.

  • Corrosion-resistant design

    • The luminaire housing is robustly constructed, weather proof, hail proof, corrosion proof and vandal resistant. It is manufactured from corrosion-resistant aluminium (6063T6).

  • Various options available

    • The various options make the LEDBEAM very versatile, such as different LED colours (warm white, red, green, blue, and RGB), opal and/or impact-resistant protector, wall mounting bracket, and various cable entry options and cable lengths.

  • Various light distributions

    • The incorporated lens system is available in narrow beam, medium beam, wide beam, extra wide beam and elliptical beam, making the LEDBEAM a very versatile lighting solution.

Characteristics

Compliance
SABS Approved
SANS 60598-2-5
ROHS compliant
Please contact us for more detailed information.
Nominal voltage
24VDC
Surge protection (kV)
10
Please contact us for more detailed information.
Nominal flux (lm)
9450
Luminaire output flux (lm)
6615
Power consumption (W)
72.0
Luminaire efficacy - up to (lm/W)
131
(The data provided represents the highest output values.)
Please contact us for more detailed information.
LED colour temperature
Neutral white 750
Warm White 730
RGB
Colour rendering index (CRI)
≥70
Please contact us for more detailed information.
Housing
Body: Aluminium extrusion, End-caps: Die-cast aluminium (6063T6)
Protector
PMMA (Suitable for Food & Beverage industry)
Tightness level
IP 66
Impact resistance
IK 10
Please contact us for more detailed information.
All configurations
100,000h - L70B10
Please contact us for more detailed information.
Operating temperature range (Ta)
-20°C up to +40°C
Please contact us for more detailed information.

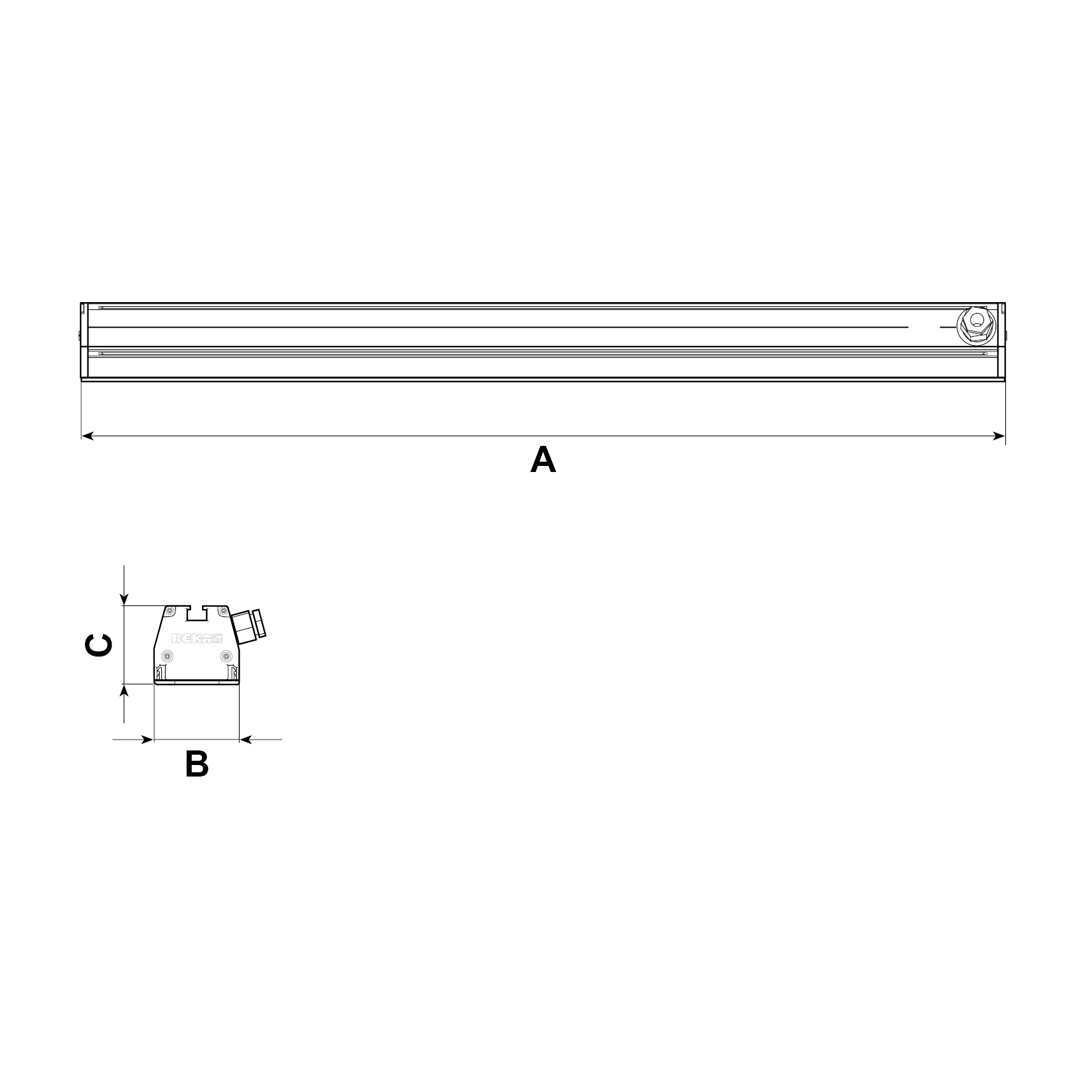

Dimensions and mounting

Mounting possibilities
Bracket Mounting
Optional: Wall mounting bracket
Please contact us for more detailed information.
